High Strength Portable Pipe Cutting And Beveling Machine Stable Performance
Portable Pipe Cutting And Beveling Machine Features
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
Portable Pipe Cutting And Beveling Machine Introduction
SFM Series of Pipe Cutting and Beveling Machine is the pipe processing equipment independently developed by our company based on the market and prospect of pipe service industry. The products are portable, precise, and efficient and in modular design, fully meeting customer demands, so they are the perfect choice for the cutting, beveling and end prefabrication of various pipes.
Portable Pipe Cutting And Beveling Machine Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.
We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.
Standard Configuration
| Machine | SFM machine | 1PC |
| Drive Mode | Electric/pneumatic/hydraulic Motor | 1PC |
| Components | Aluminum alloy/wooden packing case | 1PC |
| Cutter holder | 1PC |
| Cutting blade | 1PC |
| Tools | Rubber hammer, Spray bottle, Square, Wrench set | 1SET |
| Documents | Operating manual, SFM | 1PC |
| Certificate of conformity, SFM | 1PC |
| U-disk | 1PC |
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
Manufacture

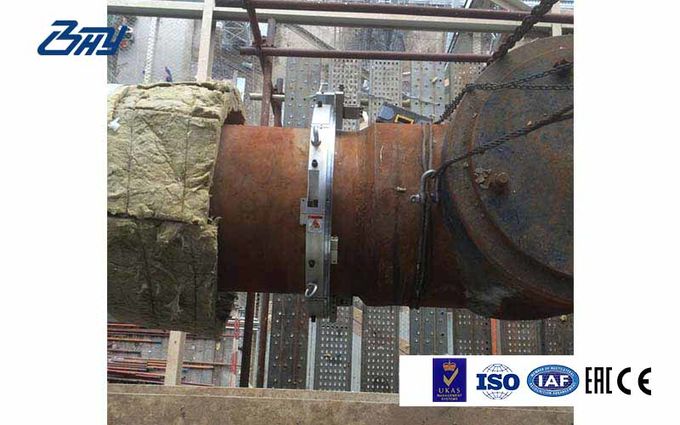

Working On Site
